We have earned our name as a renowned manufacturer and supplier of Hook Bolt. It is a multi-use hook for hanging and holding almost anything-wires, cords, pictures, furniture, sport equipment, planters and more. Our expert workforce uses best quality stainless steel and alloy steel to manufacture this bolt. It can hold very heavy applications when installed properly on both wooden or plastic surface. Clients can avail our Hook Bolt in different sizes and specifications as per their requirements.
We supply the following hook bolt styles:
- Round end screw hooks
- Square end screw hooks
- Gate hooks
- J bolts
- Wire S hooks
- S hooks
- Clevis grab hooks
- Droli forged hooks
- Droli forged safety snali hooks
- V hooks
ASTM A193 / A194 Stainless Steel Forged Hook Bolts Specification
| Product name | Stainless Steel Forged Hook Bolts |
|---|---|
| Place of Origin | India |
| Standard | ISO 4017, DIN931, GB5783, DIN, ASTM, ANSI, JIS, EN, AS |
| DIN Standard | B.S. DIN933 DIN931 DIN934 DIN912 DIN603 DIN6923 |
|
Passivation /plain |
| Stainless Steel Forged Hook Bolts Size | M2 - M100 |
| Stainless Steel Forged Hook Bolts Diameter | M3-M60 |
| Stainless Steel Forged Hook Bolts Length | 6mm-500mm |
| Head | Hex, Square, Round, Hex flange, Flat, T-head & Triangular etc |
| Neck type | Hex, Square, Triangular, Oval & Knurled etc |
| Drive type | Phil, Slotted, Hex socket, Torx & square slot etc |
| Stainless Steel Forged Hook Bolts Application | Wind tower, Nuclear power, Railway, Automotive industry, Construction, Electronic industry |
| Dimensions | ASME B18.6.3 **Exception: screws 6 inches and shorter are fully threaded. |
| Drive Style |
Type I |
| Stainless Steel Forged Hook Bolts Material | 18-8 Stainless Steel, stainless steel ss 304/ SS316 A2/A4, SS201, SS303, SS304, SS316, SS316L, SS904L, A2-70; A4-70; A4-80 |
| Thread Requirements | ASME B1.1, UNC & UNF, Class 2A (Fastenal will inspect and accept parts with a 1A no-go gauge) |
| Finish | Per ASTM A380/A380M |
| Finishing | Zinc Plated (Yellow, White, Blue, Black), Hop Dip Galvanized (HDG) phosphorization, Black Oxide, Geomet, Dacroment, anodization, Nickel plated, Zinc-Nickel plated, Brass Plated, Tin Plated, Black Plated, Copper Plated, Gold Plated, Salt fog test |
| Stock Products | Stainless steel: All DIN, GB Standard and part ASNI standard stainless steel Forged Hook Bolts, Example: ISO7380, DIN7981, DIN7982, DIN916, DIN913, DIN7985, DIN912 |
| Production technology | Cold Forged |
| Manufacturing Process | Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing |
| MOQ | 10 pieces |
| Delivery time | Regular product is about 7-15 days, custom product will according to special requirement |
| Others | OEM, ODM, ±0.03MM tolerance |
| Surface treatment of stainless steel Forged Hook Bolts |
|
| Coatings | Black Oxide, Cadmium, Galvanized, Teflon, Xylan, Zinc, Others Upon Request |
| Tolerance of stainless steel Forged Hook Bolts | +/-0.01mm to +/-0.05mm |
| Samples | Yes |
| Production Capacity | 2,700,000 pieces per month |
| Payment Terms | T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping |

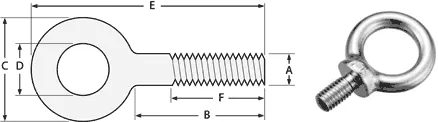

Stainless Steel Forged Hook Bolts Dimensions
| Length (B) |
Outside Eye Diameter (C) |
Inside Eye Diameter (D) |
Overall Length* (E) |
Thread Length* (F) |
|---|---|---|---|---|
| 1/4"-20 (A) | ||||
| 2" | 1" | 1/2" | 3-7/32" | 1-1/2" |
| 3" | 1" | 1/2" | 4-7/32" | 1-1/2" |
| 4" | 1" | 1/2" | 5-7/32" | 2" |
| 5" | 1" | 1/2" | 6-7/32" | 2-1/2" |
| 6" | 1" | 1/2" | 7-7/32" | 3" |
| 5/16"-18 (A) | ||||
| 2-1/4" | 1-1/4" | 5/8" | 3-23/32" | 1-1/2" |
| 3-1/4" | 1-1/4" | 5/8" | 4-23/32" | 1-1/2" |
| 4-1/4" | 1-1/4" | 5/8" | 5-23/32" | 2-1/2" |
| 5" | 1-1/4" | 5/8" | 6-15/32" | 2-1/2" |
| 6" | 1-1/4" | 5/8" | 7-15/32" | 3" |
| 3/8"-16 (A) | ||||
| 2-1/2" | 1-1/2" | 3/4" | 4-1/4" | 1-1/2" |
| 3" | 1-1/2" | 3/4" | 4-3/4" | 1-1/2" |
| 4" | 1-1/2" | 3/4" | 5-3/4" | 2" |
| 4-1/4" | 1-1/2" | 3/4" | 6" | 2" |
| 4-1/2" | 1-1/2" | 3/4" | 6-1/4" | 3" |
| 5" | 1-1/2" | 3/4" | 6-3/4" | 3" |
| 6" | 1-1/2" | 3/4" | 7-3/4" | 3" |
| 8" | 1-1/2" | 3/4" | 9-3/4" | 4" |
| 10" | 1-1/2" | 3/4" | 11-3/4" | 4" |
| 1/2"-13 (A) | ||||
| 2" | 2" | 1" | 4-3/16" | 1-5/8" |
| 3-1/4" | 2" | 1" | 5-7/16" | 2" |
| 4" | 2" | 1" | 6-3/16" | 3" |
| 4-1/2" | 2" | 1" | 6-11/16" | 3" |
| 6" | 2" | 1" | 8-3/16" | 3" |
| 8" | 2" | 1" | 10-3/16" | 4" |
| 10" | 2" | 1" | 12-3/16" | 4" |
| 12" | 2" | 1" | 14-3/16" | 4" |
| 5/8"-11 (A) | ||||
| 4" | 2-1/2" | 1-3/8" | 6-5/8" | 3" |
| 4-1/2" | 2-1/2" | 1-3/8" | 7-1/8" | 3" |
| 6" | 2-1/2" | 1-3/8" | 8-5/8" | 3" |
| 8" | 2-1/2" | 1-3/8" | 10-5/8" | 4" |
| 10" | 2-1/2" | 1-3/8" | 12-5/8" | 4" |
| 12" | 2-1/2" | 1-3/8" | 14-5/8" | 4" |
| 15" | 2-1/2" | 1-3/8" | 17-5/8" | 6" |
| 18" | 2-1/2" | 1-3/8" | 20-5/8" | 6" |
| 24" | 2-1/2" | 1-3/8" | 26-5/8" | 6" |
| 3/4"-10 (A) | ||||
| 4" | 2-13/16" | 1-1/2" | 6-7/8" | 3" |
| 4-1/2" | 2-13/16" | 1-1/2" | 7-3/8" | 3" |
| 6" | 2-13/16" | 1-1/2" | 8-7/8" | 3" |
| 8" | 2-13/16" | 1-1/2" | 10-7/8" | 4" |
| 10" | 2-13/16" | 1-1/2" | 12-7/8" | 4" |
| 12" | 2-13/16" | 1-1/2" | 14-7/8" | 4" |
| 15" | 2-13/16" | 1-1/2" | 17-7/8" | 6" |
| 18" | 2-13/16" | 1-1/2" | 20-7/8" | 6" |
| 24" | 2-13/16" | 1-1/2" | 26-7/8" | 6" |
| 7/8"-9 (A) | ||||
| 5" | 3-1/2" | 1-3/4" | 8-1/4" | 3" |
| 6" | 3-1/2" | 1-3/4" | 9-1/4" | 3" |
| 8" | 3-1/2" | 1-3/4" | 11-1/4" | 4" |
| 10" | 3-1/2" | 1-3/4" | 13-1/4" | 4" |
| 12" | 3-1/2" | 1-3/4" | 15-1/4" | 4" |
| 18" | 3-1/2" | 1-3/4" | 21-1/4" | 6" |
| 24" | 3-1/2" | 1-3/4" | 27-1/4" | 6" |
| 1"-8 (A) | ||||
| 6" | 4" | 2" | 9-5/8" | 3" |
| 8" | 4" | 2" | 11-5/8" | 4" |
| 10" | 4" | 2" | 13-5/8" | 4" |
| 12" | 4" | 2" | 15-5/8" | 4" |
| 15" | 4" | 2" | 18-5/8" | 6" |
| 18" | 4" | 2" | 21-5/8" | 6" |
| 24" | 4" | 2" | 27-5/8" | 6" |
| 1-1/4"-7 (A) | ||||
| 6" | 4-7/16" | 2-3/16" | 10-1/2" | 3" |
| 8" | 4-7/16" | 2-3/16" | 12-1/2" | 4" |
| 12" | 4-7/16" | 2-3/16" | 16-1/2" | 4" |
| 18" | 4-7/16" | 2-3/16" | 22-1/2" | 6" |
| 24" | 4-7/16" | 2-3/16" | 28-1/2" | 6" |
| 1-1/2"-6 (A) | ||||
| 6" | 5-3/16" | 2-1/2" | 11-1/4" | 3" |
| 12" | 5-3/16" | 2-1/2" | 17-1/4" | 4" |
| 18" | 5-3/16" | 2-1/2" | 23-1/4" | 6" |
| 24" | 5-3/16" | 2-1/2" | 29-1/4" | 6" |
| 2"-4-1/2 (A) | ||||
| 12" | 6-7/8" | 3-1/4" | 19" | 4" |
| * Overall length and thread length for imported eye bolts are approximate. Their values may differ from those listed in this table. | ||||
High Tensile Hook Bolts Uses and Application
- Hook Bolts Uses in Sugar Industries
- Hook Bolts Uses in Cement Industries
- Hook Bolts Uses in Shipbuilding Industries
- Hook Bolts Uses in Chemical Industries
- Hook Bolts Uses in Petrochemical Industries
- Hook Bolts uses in Agriculture Industry
- Hook Bolts uses in Automobile & Transportation
- Hook Bolts uses in Oil and Gas Industry
- Hook Bolts uses in Plumbing
- Hook Bolts uses in Water supply systems
- Hook Bolts uses in Chemical Refining
- Hook Bolts uses in Building & Construction Industry
- Hook Bolts uses in Power Generation Industry
- Hook Bolts uses in Military
- Hook Bolts uses in Marine
Hook Bolts Packaging and Delivery
- Payment Modes: LC (Letter of Credit), TT (Telegraphic Transfer or Wire Transfer), Cheque, and others.
- Packaging: High Tensile Fasteners are packaged with caution and safety so they reach our client’s as good as he would expect. Packaging Charges Extra.
- Port of Dispatch: Mumbai or Kalamboli ports in the Maharashtra state of India.
- Tax: 18% GST
Hook Bolts Exporter in Countries
We, Aamaap Fasteners are leading Exporters of Hook Bolts in Mumbai, Maharashtra, India. We are Hook Bolts exporters in Oman, Hook Bolts exporters in Iran, Hook Bolts exporters in Kuwait, Hook Bolts exporters in Qatar, Hook Bolts exporters in china, Hook Bolts exporters in UAE, Hook Bolts exporters in Africa, Hook Bolts exporters in turkey, Hook Bolts exporters in Mexico, Hook Bolts exporters in Canada, Hook Bolts exporters in Malaysia, Hook Bolts exporters in Saudi Arabia, Hook Bolts exporters in brazil, Hook Bolts exporters in the USA, Hook Bolts exporters in Sri Lanka, Hook Bolts exporters in Australia, Hook Bolts exporters in Nigeria and more than 85+ countries. Our main office is located in Mumbai and we supply Hook Bolts to all major cities of India from Mumbai.
Manufacturer Exporter of Hook Bolts in the following countries:
| Manufacturer Exporter of Hook Bolts in the following countries: | |||||
|---|---|---|---|---|---|
| Saudi Arabia | Oman | Kuwait | Netherlands | Iran | |
| Bahrain | Qatar | UAE | Africa | China | |
| Nigeria | Mexico | Canada | Venezuela | United Kingdom | |
| United States | South Africa | Malaysia | Bangladesh | Turkey | |
| Singapore | Sri Lanka | Australia | Brazil | ||
Our Testing Facilities
With the objective of providing the best quality products to our customers and partners, all our products undergo rigorous testing and quality check processes. Our Stainless Steel Fastener plant is equipped with various testing facilities like Tensile Testing Machine, Hardness Test, IGC Test, Positive Material Identification Test .Tensile Testing Machine Test is also known as tension testing. This is a fundamental materials science test in which a sample is subjected to a controlled tension until failure. The results from the test are commonly used to select a material for an application, for quality control, and to predict how a material will react under other types of forces.
Impact Testing Machine is used to test the products ability to resist high rate loading. This is one of the most important tests to understand the strength of the product. We also conduct other tests like Hardness Test, IGC Test, Positive Material Identification Test to ensure that all the product going out of our manufacturing plant are the best in terms of quality. SPC analysis is used as a tool to supervise the ongoing processes. Multi stage inspection and checks are done by a trained and skilled quality assurance and control workforce to ensure that defect free products are delivered to customers
Coated Bolt Types
- PTFE Coated Hook Bolts manufacturer
- Hot Dip galvanized Hook Bolts manufacturer
- Yellow Zinc Plated Hook Bolts manufacturer
- Blue Zinc Plated Hook Bolts manufacturer
- Black Zinc Plated Hook Bolts manufacturer
- Zinc Cobalt Plated Hook Bolts manufacturer
- Aluminum Zinc Flake Coated Hook Bolts manufacturer
- Black Phosphate Hook Bolts manufacturer
- Zinc Plated Hook Bolts manufacturer
- Nickel Plated Hook Bolts manufacturer
- Chrome Plated Hook Bolts manufacturer
- Cadmium Plated Hook Bolts manufacturer
- Copper Plated Hook Bolts manufacturer
- Silver Plated Hook Bolts manufacturer
- Silver Plated Hook Bolts manufacturer
- Tin-Plated Hook Bolts manufacturer
- Tin-Plated Hook Bolts manufacturer
Hook Bolts Standards
- German DIN Hook Boltss manufacturers
- International ISO Hook Boltss manufacturers
- Indian IS Hook Boltss manufacturers
- British BS Hook Boltss manufacturers
- American ASME Hook Boltss manufacturers
- Italian UNI Hook Boltss manufacturers
- American SAE Hook Boltss manufacturers
- Spanish CSN Hook Boltss manufacturers
- Polish PN Hook Boltss manufacturers
- European EU Hook Boltss manufacturers
Hook Bolts Finishes
- Plain Finish Hook Boltss: No Coating..
- Zinc Plated Hook Boltss: Coated with Zinc.
- Zinc and Chromate Hook Boltss: Silvery and offers resistant to corrosion.
- Zinc and Yellow Chromate Hook Boltss: Offers better resistant to corrosion.
- Hot Dipped Galvanized(HDG) Hook Boltss: Offers superior resistant to corrosion due to the dipping of Hook Boltss in the molten zinc.
