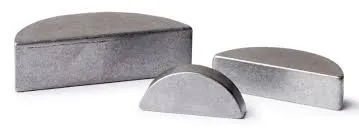

In engineering word, key is a machine element used to connect a rotating machine element to a shaft. WOODRUFF KEYS are of semicircular shape. The main advantage of WOODRUFF KEYS is elimination of milling near shaft Shoulders. WOODRUFF KEYS are used to improve the concentricity of the shaft for high speed operation. These keys are made up from SAE 1035 carbon steel. They lock pulleys and gears tightly to transmission shafts.
Stocking the full range of both standard Metric and Imperial Woodruff keys or if required we are able to manufacture Woodruff Keys to your specification. If you are looking for a specific Woodruff Key Number just give us a call and we will help track down the specification of it's design.
We have a variety of woodruff key sizes. Our Woodruff Keys are available in Carbon Steel or Stainless Steel ask our sales office for a quote or login with your B2B account today to save upto an additional 5% order value dependant.Standard Woodruff key Profiles for shafts with Woodruff keyways.
- Metric - 1.5mm x 2.6 - 10mm x 16mm
- Imperial - 1/6" x 1/4" - 3/4" x 3.1/2"
- Metric BS4235 Part 1 1977, ISO3912 - 1977, DIN6888
- Imperial BS46 Part 1 1958
- Keysteel 080M40 (EN8)
- Werkstoff C45 +C
- Werkstoff 1.4571
- A2 303/304 grade stainless steel
- A4 316 grade stainless steel
- Assorment Woodruff Key Kits
The Woodruff Keys is so called because of its manufacturing method. It consists of a semicircular key seat on the shaft surface which holds the key. The key is in the shape of a section of a circle. This type of key tends to have a lesser shear strength than compared to that of a rectangular or square key.
Woodruff keys are semicircular shaped, such that, when installed, leave a protruding tab. The keyway in the shaft is a semi-circular pocket, the mating part, a longitudinal slot. They are used to improve the concentricity of the shaft and the mating part, which is critical for high speed operation. The main advantage of the Woodruff key is that it eliminates milling a keyway near shaft shoulders, which already have stress concentrations.
Woodruff Keys are generally used for Automobiles, gearboxes, starters, alternators, fuel injection pumps, oil pumps, water pumps and brake compressors, Two wheelers, Electric motors, alternators and switch gears, Machine tools and all types of pumps Textile machineries, Pharmaceutical Machinery, Heavy Duty Machinery, Earth moving Machinery, Automotive Cran etc.
WHAT IS A WOODRUFF KEY?
A woodruff key is a half‑moon shaped machine key that prevents gears, hubs, or other components from moving independently of a rotating shaft or spindle. They also act as a fail‑safe that protects expensive parts by shearing under excessive loads. The crescent profile of the key allows it to sit deeper in the shaft reducing the likelihood of the key rolling laterally out of the groove.
HOW DOES A WOODRUFF KEY WORK?
When installed, the long, flat face of the woodruff key protrudes above the host shaft. When a mating hub, gear, or other component is pressed onto the shaft, the protruding section of the key locks components together.
Installing A Woodruff Key:
When installing a woodruff key, first press it into the semi‑circular groove milled into the shaft. Next, align the top, flat portion of the key so that it is parallel with the host shaft. During installation, woodruff keys will sometimes slip out of their groove as the mating component is pressed on. This can make woodruff keys difficult to install.
How To Keep A Woodruff Key In Place:
To keep a woodruff key in place while installing a mating component, ensure that it is situated tightly in the key seat. Since woodruff keys are made to tight tolerances, they often require a press fit into its seat. This is done by lightly tapping the flat, protruding face of the key with a hammer or mallet until the key is seated firmly. The key will still extend above the mating shaft's surface to lock the mating hub or gear in place. If the key still falls or slips out during component installation, the key is likely too small for the host groove.
SELECTING THE RIGHT WOODRUFF KEY
It is important to understand the different features of a woodruff key during the design phase of an application. Some considerations include key type, key material, and key finish.
What Are The Different Types Of Woodruff Keys?
The two most common woodruff keys are full radius and flat bottom. Both function the same, but may be appropriate for different applications. It is important to note that both radius and flat bottom woodruff keys are standard and either is shipped at the manufacturer's discretion. If a specific type is required, let G.L. Huyett know!
Full radius woodruff keys are a full half circle and make full contact with the groove seat. Full radius woodruff keys require precision of the seat groove as contact can occur between the woodruff key and the bottom of the seat causing interference and the key to protrude from the groove higher than desired.
Flat bottom woodruff keys have the same profile as standard woodruff keys, however, the bottom of the key has been shaved flat. The flat bottom reduces the potential of interference at the bottom of the seat, allowing the woodruff key to seat fully in the groove and alleviating potential clearance issues of excessive key height.
Hi‑Pro keys are a variant of woodruff keys that feature a full radius but have the added feature of feet. When installed, the feet extend over the face of the host shaft, preventing the key from rocking in its rounded seat.
Woodruff Key Materials
Woodruff keys are crafted in carbon, alloy, and stainless steel. Carbon and alloy steel are both durable, however they must be plated or coated to prevent corrosion. Stainless steel surpasses carbon and alloy steel in corrosion resistance, but it is not as strong.
ADVANTAGES OF A WOODRUFF KEY INCLUDE:
- Adjusts to any taper present in mating piece or shaft
- Ideal for high speed rotating assemblies
- Eliminates milling near shaft shoulders reducing stress concentrations at the shaft end
- Deeper seat in the shaft reduces risk of rolling out of key seat
- Provides a more exact fit, reducing play in the key seat
- Easy removal
HOW ARE WOODRUFF KEYS MEASURED?
Woodruff keys often can be confusing to measure, especially inch woodruff keys. Use the infographic below to learn which measurements are required to select the correct woodruff key when ordering.
High Tensile woodruff key Uses and Application
- woodruff key Uses in Sugar Industries
- woodruff key Uses in Cement Industries
- woodruff key Uses in Shipbuilding Industries
- woodruff key Uses in Chemical Industries
- woodruff key Uses in Petrochemical Industries
- woodruff key uses in Agriculture Industry
- woodruff key uses in Automobile & Transportation
- woodruff key uses in Oil and Gas Industry
- woodruff key uses in Plumbing
- woodruff key uses in Water supply systems
- woodruff key uses in Chemical Refining
- woodruff key uses in Building & Construction Industry
- woodruff key uses in Power Generation Industry
- woodruff key uses in Military
- woodruff key uses in Marine
woodruff key Packaging and Delivery
- Payment Modes: LC (Letter of Credit), TT (Telegraphic Transfer or Wire Transfer), Cheque, and others.
- Packaging: High Tensile Fasteners are packaged with caution and safety so they reach our client’s as good as he would expect. Packaging Charges Extra.
- Port of Dispatch: Mumbai or Kalamboli ports in the Maharashtra state of India.
- Tax: 18% GST
woodruff key Exporter in Countries
We, Aamaap Fasteners are leading Exporters of Hex woodruff key in Mumbai, Maharashtra, India. We are Hex woodruff key exporters in Oman, Hex woodruff key exporters in Iran, Hex woodruff key exporters in Kuwait, Hex woodruff key exporters in Qatar, Hex woodruff key exporters in china, Hex woodruff key exporters in UAE, Hex woodruff key exporters in Africa, Hex woodruff key exporters in turkey, Hex woodruff key exporters in Mexico, Hex woodruff key exporters in Canada, Hex woodruff key exporters in Malaysia, Hex woodruff key exporters in Saudi Arabia, Hex woodruff key exporters in brazil, Hex woodruff key exporters in the USA, Hex woodruff key exporters in Sri Lanka, Hex woodruff key exporters in Australia, Hex woodruff key exporters in Nigeria and more than 85+ countries. Our main office is located in Mumbai and we supply Hex woodruff key to all major cities of India from Mumbai.
Manufacturer Exporter of Hex woodruff key in the following countries:
| Manufacturer Exporter of Hex woodruff key in the following countries: | |||||
|---|---|---|---|---|---|
| Saudi Arabia | Oman | Kuwait | Netherlands | Iran | |
| Bahrain | Qatar | UAE | Africa | China | |
| Nigeria | Mexico | Canada | Venezuela | United Kingdom | |
| United States | South Africa | Malaysia | Bangladesh | Turkey | |
| Singapore | Sri Lanka | Australia | Brazil | ||
Our Testing Facilities
With the objective of providing the best quality products to our customers and partners, all our products undergo rigorous testing and quality check processes. Our Stainless Steel Fastener plant is equipped with various testing facilities like Tensile Testing Machine, Hardness Test, IGC Test, Positive Material Identification Test .Tensile Testing Machine Test is also known as tension testing. This is a fundamental materials science test in which a sample is subjected to a controlled tension until failure. The results from the test are commonly used to select a material for an application, for quality control, and to predict how a material will react under other types of forces.
Impact Testing Machine is used to test the products ability to resist high rate loading. This is one of the most important tests to understand the strength of the product. We also conduct other tests like Hardness Test, IGC Test, Positive Material Identification Test to ensure that all the product going out of our manufacturing plant are the best in terms of quality. SPC analysis is used as a tool to supervise the ongoing processes. Multi stage inspection and checks are done by a trained and skilled quality assurance and control workforce to ensure that defect free products are delivered to customers
Coated woodruff key Types
- PTFE Coated woodruff key manufacturer
- Hot Dip galvanized woodruff key manufacturer
- Yellow Zinc Plated woodruff key manufacturer
- Blue Zinc Plated woodruff key manufacturer
- Black Zinc Plated woodruff key manufacturer
- Zinc Cobalt Plated woodruff key manufacturer
- Aluminum Zinc Flake Coated woodruff key manufacturer
- Black Phosphate woodruff key manufacturer
- Zinc Plated woodruff key manufacturer
- Nickel Plated woodruff key manufacturer
- Chrome Plated woodruff key manufacturer
- Cadmium Plated woodruff key manufacturer
- Copper Plated woodruff key manufacturer
- Silver Plated woodruff key manufacturer
- Silver Plated woodruff key manufacturer
- Tin-Plated woodruff key manufacturer
- Tin-Plated woodruff key manufacturer
woodruff key Standards
- German DIN woodruff key manufacturers
- International ISO woodruff key manufacturers
- Indian IS woodruff key manufacturers
- British BS woodruff key manufacturers
- American ASME woodruff key manufacturers
- Italian UNI woodruff key manufacturers
- American SAE woodruff key manufacturers
- Spanish CSN woodruff key manufacturers
- Polish PN woodruff key manufacturers
- European EU woodruff key manufacturers
woodruff key Finishes
- Plain Finish woodruff key: No Coating.
- Zinc Plated woodruff key: Coated with Zinc.
- Zinc and Chromate woodruff key: Silvery and offers resistant to corrosion.
- Zinc and Yellow Chromate woodruff key: Offers better resistant to corrosion.
- Hot Dipped Galvanized(HDG) woodruff key: Offers superior resistant to corrosion due to the dipping of woodruff key in the molten zinc.
